Tungsten Carbide Seals Ball

Tungsten Carbide Seals Ball picture

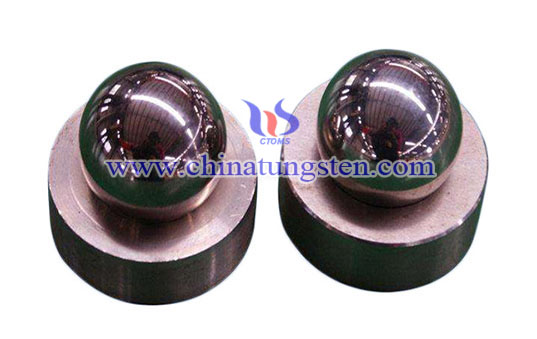

Tungsten carbide seals ball seat and ball are metal, and in the medium under pressure, the sealing valve tungsten carbide seals ball can produce a certain displacement, and is pressed against the sealing surface at the exit end to ensure that the outlet end seal. Simple Forged floating ball hard seal structure, good sealing, sealing valve Tungsten carbide ball to work under medium loads will all be passed to export seal. Tungsten carbide seals ball for water, solvents, acids and gas work in general media, but also for the poor working conditions of media, such as oxygen, hydrogen peroxide, methane and ethylene.

Tungsten carbide seals ball is mainly used in all kinds of high-pressure pipelines medium chemical industry, metallurgy, petroleum, pharmaceutical and other industries, the applicable temperature: -196 ~ 450 ℃; drive modes: manual, pneumatic, electric, hydraulic, turbine moving etc; nominal diameter: 2 "to 12"; nominal pressure: 150LB ~ 1500LB; suitable medium: water, gas, oil, natural gas and acid corrosion media.
